In the modern electronic landscape, Driver ICs (Integrated Circuits) are essential building blocks powering a wide range of devices—from simple LED displays to complex automotive systems. Whether you are an engineer, hobbyist, or industry observer, understanding the role and varieties of Driver ICs is crucial for appreciating how electronic systems interface with real-world loads such as motors, displays, and lighting.
This blog provides a detailed overview of Driver ICs, including their definition, types, real-world examples, industry applications, and future trends.
What Are Driver ICs?
Driver ICs, or Driver Integrated Circuits, are electronic components designed to control or amplify electrical signals to drive specific loads. These loads can range from LEDs, motors, and solenoids to more sophisticated elements like LCD displays and power transistors.
A Driver IC acts as an interface between a low-power control circuit (like a microcontroller or processor) and a high-power device or system. Since many output devices require more current or voltage than microcontrollers can provide directly, Driver ICs perform the vital function of signal conditioning, voltage/current amplification, and switching.
Key Functions of Driver ICs:
- Signal amplification or buffering
- Voltage or current regulation
- Power switching (on/off control)
- Protection (thermal shutdown, overcurrent)
- Isolation (in some configurations)
Why Are Driver ICs Important?
- Efficiency: They reduce power dissipation and increase system efficiency.
- Protection: Protect control circuitry from load transients and short circuits.
- Miniaturization: Integrate multiple driver functions in a compact package.
- Reliability: Deliver consistent performance in harsh electrical environments.
Driver ICs have become indispensable components across consumer, industrial, automotive, and communications sectors.
Common Types of Driver ICs
The world of Driver ICs is vast and can be segmented based on the type of load they are designed to drive or signal characteristics they handle. Below are some of the most common types:

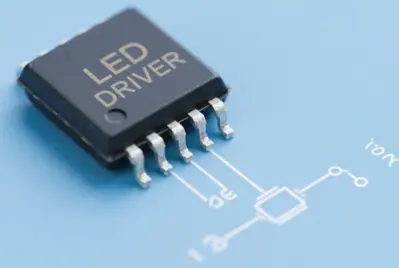

1. LED Driver ICs
LED Drivers control current and voltage to safely power LEDs. Given LEDs are current-sensitive, a dedicated driver ensures consistent brightness, dimming capability, and longer lifespan.
Types: Constant current drivers, constant voltage drivers, PWM-based dimming drivers.
Examples:
- Texas Instruments TLC59711 – 12-channel PWM LED driver.
- ON Semiconductor NCL30160 – Constant current buck LED driver.
Applications: Smart lighting, automotive headlamps, backlighting in displays, signage, and general illumination.
2. Motor Driver ICs
These ICs control motors by handling higher current and voltage demands, often incorporating H-bridges or half-bridges to drive DC, stepper, or brushless DC (BLDC) motors.
Types:
- DC motor drivers (e.g., L293D, L298N)
- Stepper motor drivers (e.g., A4988, DRV8825)
- BLDC drivers with or without Hall sensor inputs
Examples:
- TI DRV8412 – Dual full-bridge driver for DC motors.
- Allegro A4988 – Stepper motor driver with microstepping.
Applications: Robotics, industrial automation, drones, e-bikes, and HVAC systems.
3. Display Driver ICs
Display drivers convert digital signals from a processor into analog signals or voltage levels suitable for screens such as LCDs, OLEDs, or LED matrices.
Functions:
- Handle refresh rates and pixel control
- Manage backlight brightness
- Translate color data
Examples:
- Sitronix ST7735 – RGB driver for 128×160 LCD panels.
- Samsung S6E3HA8 – AMOLED display driver.
Applications: Smartphones, TVs, wearable displays, instrument clusters, and industrial panels.
4. Gate Driver ICs
Gate drivers are used to control power transistors like MOSFETs and IGBTs in high-power switching applications. These ICs provide fast switching, level shifting, and short-circuit protection.
Examples:
- Infineon IRS21867 – Half-bridge gate driver.
- TI UCC21520 – Isolated dual-channel gate driver.
Applications: Power inverters, motor control, electric vehicles (EVs), solar inverters, and SMPS (Switch Mode Power Supplies).
5. Solenoid and Relay Drivers
These ICs provide current control for electromechanical actuators such as solenoids or relays, offering inductive load protection via flyback diodes, snubber circuits, or active clamping.
Examples:
- TI ULN2003A – 7-channel Darlington transistor array.
- Maxim MAX14913 – Octal high-side switch with diagnostics.
Applications: Building automation, vending machines, automotive locks and valves.
Real-World Examples of Driver ICs in Action
Let’s explore how Driver ICs are implemented in real-world devices:
Smartphone Displays
The vibrant, high-resolution screens of smartphones depend heavily on display driver ICs that interpret pixel data, synchronize refresh rates, and adjust brightness dynamically.
Electric Vehicles (EVs)
Motor driver ICs and gate drivers work together to control high-power motors and inverters, ensuring precise speed control, torque management, and regenerative braking in EVs.
LED Street Lighting
LED driver ICs ensure consistent brightness across temperature changes and voltage fluctuations while enabling dimming and smart control via wireless modules.
3D Printers
Stepper motor drivers control the precise X, Y, and Z-axis movements, crucial for layer-by-layer manufacturing in 3D printing.
Industries That Rely on Driver ICs
Driver ICs are used in nearly every electronics-powered industry. Here are some of the most relevant:
1. Consumer Electronics
Smartphones, TVs, wearables, and tablets all use driver ICs for display control, vibration motors, camera focus mechanisms, and more.
2. Automotive
Modern vehicles utilize dozens of Driver ICs—for motorized windows, adaptive headlights, digital dashboards, seat adjustments, and EV drivetrain control.
3. Industrial Automation
Motor drivers, solenoid controllers, and gate drivers are central to robot arms, conveyor belts, and CNC machines, enabling accurate and high-speed operation.
4. Healthcare and Medical Devices
Driver ICs power pumps, ventilators, scanning equipment, and infusion systems, often with a focus on precision, safety, and fail-safes.
5. Telecommunications
Driver ICs are used in RF circuits, signal modulation, and antenna alignment systems within cellular towers and communication infrastructure.
6. Aerospace and Defense
Radiation-hardened driver ICs are used in satellite systems, radar modules, avionics, and missile guidance systems, requiring extreme reliability.
Key Manufacturers of Driver ICs
Several global semiconductor companies specialize in Driver ICs:
- Texas Instruments
- Infineon Technologies
- STMicroelectronics
- ON Semiconductor
- NXP Semiconductors
- Allegro Microsystems
- ROHM Semiconductor
- Analog Devices
- Microchip Technology
These companies offer extensive product portfolios for LED, motor, and gate drivers across various voltages, currents, and packaging options.
Design Considerations When Choosing a Driver IC
When selecting a Driver IC, engineers must consider:
- Load Type: Is it inductive, capacitive, or resistive?
- Voltage/Current Requirements: Ensure the IC supports the operating range.
- Interface Compatibility: SPI, I²C, PWM, or analog input?
- Thermal Management: Does it need heat sinking or thermal shutdown?
- Protection Features: Overcurrent, overvoltage, ESD, reverse polarity?
- Size and Form Factor: Especially important for mobile or embedded designs.
Future Trends in Driver IC Development
As electronics continue to evolve, so do the requirements for Driver ICs. Key trends include:
- Increased Integration: Combining multiple driver channels and protections into a single IC.
- Lower Power and Heat: Enhanced energy efficiency for battery-powered devices.
- Automotive-Grade Reliability: AEC-Q100-qualified driver ICs for ADAS, EVs.
- Smarter Drivers: Diagnostics, feedback monitoring, and digital programmability.
- Miniaturization: Smaller packages for wearables and space-constrained systems.
Conclusion
Driver ICs may not always be in the spotlight, but they are undeniably the backbone of modern electronic systems. By enabling precise control of loads—be it lighting, motion, display, or actuation—they ensure that control signals from microcontrollers and processors can have real-world impact.
From consumer gadgets to industrial robots, and from smart lighting to electric vehicles, the applications of Driver ICs are vast, evolving, and essential. For engineers, system designers, and tech enthusiasts alike, understanding the selection, function, and role of driver ICs unlocks better product design, increased reliability, and technological innovation.
FAQs
Q1: What is the difference between a Driver IC and a Power Amplifier?
A: A Driver IC is typically used to control specific loads like LEDs or motors with appropriate current/voltage. A power amplifier, on the other hand, focuses on increasing signal strength in analog applications like audio or RF.
Q2: Can Driver ICs be used with microcontrollers like Arduino or Raspberry Pi?
A: Absolutely. Many driver ICs (like ULN2003A or L298N) are designed to interface easily with microcontroller platforms for DIY and prototyping purposes.
Q3: Are all Driver ICs the same?
A: No. Driver ICs vary significantly based on load type, current/voltage requirements, protection features, and interface compatibility.
Q4: How do I choose the right motor driver?
A: Consider your motor type (DC, stepper, BLDC), operating voltage/current, required features (microstepping, current sensing), and thermal performance.
Q5: What happens if I drive an LED without a proper driver IC?
A: LEDs may flicker, overheat, or fail prematurely due to current overdrive or voltage fluctuations.
